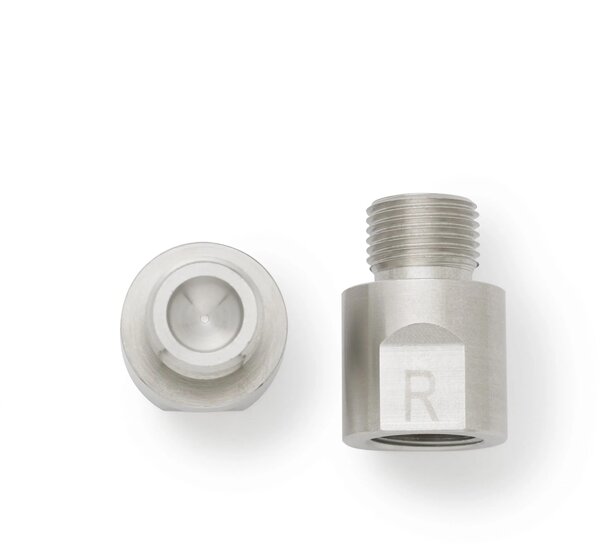

Fit Kit Systems Pedal Extenders
Details
Bike Pedal Extenders alleviate pain and inefficiency by allowing you to achieve your natural stance width on the bike. Available for both pedal wrench flat and hex key pedal styles, and as a pair.
Why bike pedal extenders? Are your feet far enough apart when you ride? Do you experience knee or hip pain while riding?
As a cyclist, bike shop, or bike fitter you can change pedals but this all too often does not significantly impact the distance of the feet from one another. Whether you’re 5 feet tall and 95 pounds, 7 feet tall and 250 pounds, or any height or weight on standard bicycles, your feet are the same width apart.
Cycling stance width is usually determined by your bicycle wheel width, crank width, and/or pedal spindle length (most pedals have the same width). Unfortunately, this does not work for everyone and many times causes pain or limits performance which is why Fit Kit Systems is proud to offer a ride-changing experience with pedal extenders.
Alleviate knee or hip pain resulting from riding with feet too close together
Create optimal function of the body based on natural, increased stance
Improved foot comfort and power transfer
Increased efficiency
Reduce unwanted knee movement (the figure-8 or keyhole knee movement pattern)
Pedal extenders offer a significantly greater increase in stance width (sometimes erroneously referred to as Q factor) than what can be achieved with cleat adjustments or the use of pedal spacers (washers) on the pedal axle.
Solve the problem of the heel or the foot rubbing against the chainstay
Allows larger feet not to press or rub against the crank
- Wrench – solid body pedal extenders are intended for use with pedals installed using a 15mm pedal wrench. Common on lower-end road and mountain bike pedals and the original Speedplay pedals. These require an 18mm or an adjustable wrench for removal.
- Hex – hollow body with a 6mm adapter hex collar intended for use with pedals that do not have wrench flats. The Hex collar needs to be inserted in an 8mm recessed end of the pedal spindle before installation. For use with all pedals without wrench flats machined on the axle or any pedals that require a hex or Allen wrench for installation. This includes most modern road, gravel, and mountain bike pedals including higher-end Shimano models, Look, Time, Assioma, Wahoo Speedplay, and Crank Bros. Installation requires the use of a 6mm hex key or wrench. Removal requires both a 6mm hex key and an 18mm or adjustable wrench.
- Our pedal extenders are a proven design made of strong stainless steel
- Independently load and fatigue tested
- They meet ISO 4210 requirements for bicycle pedal and drive systems
- Not recommended for use with carbon fiber (composite) crank arms
- Recommendations for use do not constitute medical diagnosis or advice
- Extension Length: 19mm
- Thread Diameter: 9/16?
- Material: Stainless Steel
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Hex | PE-HX-PR | 210000091420 |
| Wrench | PE-WR-PR | 210000091421 |
