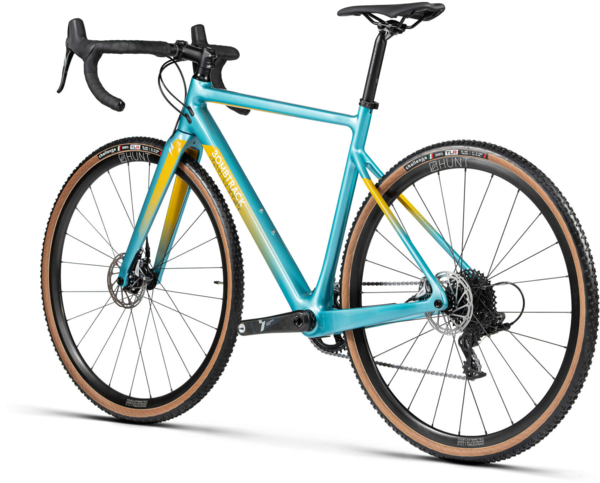

Bombtrack Bicycle Company Tension C

Bombtrack Bicycle Company Tension C
  • Color: Turquoise
$4,249.99
Color: Turquoise
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

Head down, tongue down, pedal pedal pedal.
A bike with a trophy cabinet glistening with World Cup silverware, the Tension C keeps weight to a minimum with its race-winning carbon chassis. When resistance reduction is a necessity, the Sram Force One groupset and matching carbon crank, Hunt 4 Season wheels, and a Richey 4-Axis stem will let you leave everything out on the course. Fast Challenge Grifo tyres are the icing on the cake – all that’s left now is to welcome the applause of cowbells as you reach the chequered flag in first place.

Sizes:
Bike SizeXSSMLXL
Wheel size 700C 700C 700C 700C 700C
Seat Tube Length 490 520 540 560 580
Horizontal TT length 521 535 545 560 575
Seat Angle 75.0° 74.0° 73.5° 73.0° 73.0°
Seat Angle effective 75.0° 74.0° 73.5° 73.0° 73.0°
Head Angle 71.0° 71.5° 72.0° 72.0° 72.0°
Headtube Length 110 123 140 160 180
BB Drop 64 64 64 64 64
Chainstay Length 425 425 425 425 425
Fork Offset 45 45 45 45 45
Trail 73 70 66 66 66
Wheelbase Length 1007 1007 1008 1018 1033
Standover 761 785 800 818 837
Reach 378 376 378 382 391
Stack 533 553 565 584 603
Front Center 591 591 591 601 616
Axle to Crown 400 400 400 400 400
Minimum rider height ¹ 1550 1630 1710 1790 1860
Maximum rider height ¹ 1650 1730 1810 1880 1950

¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore BOMBTRACK cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local BOMBTRACK dealer or a professional bike fitter and have them determine the needed size.

Sizes:
Bike SizeXSSMLXL
Handlebar type Dropbar Dropbar Dropbar Dropbar Dropbar
Width (drops) 400 400 420 440 440
Width (barends) 409 409 429 449 449
Reach 73 73 73 73 73
Flare 12° 12° 12° 12° 12°
Backsweep 4.5° 4.5° 4.5° 4.5° 4.5°
Drop 128 128 128 128 128
Upsweep - - - - -
Rise - - - - -

Specs

Frame TORAY T700/T800 Hi-Mod carbon, TA, 68 mm T47 BB shell
Fork Full carbon, TA, 1.1/2'' - 1.1/8''
Rims Front: HUNT 4 SEASON double wall asymmetric rim, TLC, i19, 24h
Rear: HUNT 4 SEASON double wall asymmetric rim, TLC, i19, 24h
Hubs Front: HUNT 4 SEASON V2 sealed hub, 6-bolt disc
Rear: HUNT 4 SEASON V2 sealed hub, 11-speed, 6-bolt disc
Axles 12 x 100 mm / 12 x 142 mm
Tires Front: CHALLENGE GRIFO TLR, tanwall, 700C x 33C, tubeless ready
Rear: CHALLENGE GRIFO TLR, tanwall, 700C x 33C, tubeless ready
Bottom Bracket BOMBTRACK T47 external sealed BB for 30 mm spindle
Crankset SRAM FORCE 1 carbon crank
Chainrings CNC machined aluminium, narrow-wide, 40 T
Shifters SRAM FORCE 1 double tap 1 x 11
Rear Derailleur SRAM FORCE 1, clutch, medium cage
Cassette/Freewheel SRAM PG-1130 11-speed, 11 - 36 T
Chain KMC X11 EPT Anti Rust chain, 1/2'' x 11/128'', 114L
Brakes SRAM FORCE flat mount hydraulic disc brakes with 140 mm rotors
Brake Levers SRAM FORCE 1 double tap hydraulic
Handlebars RITCHEY ROAD COMP STREEM III drop bar, 31.8 mm, 5° backsweep
Tape/Grips BOMBTRACK COMMAND bar tape
Stem RITCHEY COMP 4-AXIS 44 forged aluminium stem, -6°
Headset Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Seatpost RITCHEY COMP 2-BOLT aluminium seatpost 27.2 mm x 300 mm
Saddle BOMBTRACK DART saddle
Seat clamp BOMBTRACK PRIME forged aluminium seat clamp, 31.8 mm
Weight 8.5 kg (size M)
Weight frameset 1060 g frame (size S, incl. TA, hanger, cable guides) / 600 g fork (300 mm steerer, incl. TA)
Maximum rider weight 105 kg incl. luggage
ASTM riding condition 2

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Turquoise / X-Small / 700c 04055822507783 921313-01-XS 210000089131
Turquoise / Small / 700c 04055822507790 921313-01-S 210000089129
Turquoise / Medium / 700c 04055822507806 921313-01-M 210000089128
Turquoise / X-Large / 700c 04055822507820 921313-01-XL 210000089130
