Bombtrack Bicycle Company Cale AL

Bombtrack Bicycle Company Cale AL
Matte Hazy Green
Please select options
Order now and pick up in-store for free

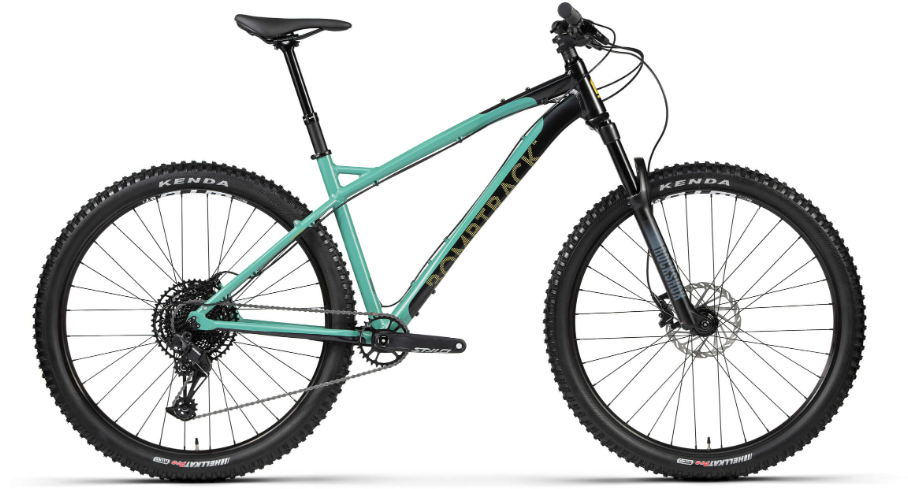

The Cale AL is the aluminum alternative to its steely Cale partner, ready to conquer the mountains as sold. Not scrimping on off-road potential nor cargo-carrying capability, this bike can handle your local trail center or the high peaks in its stride with ease. Fast-rolling 29’’ wheels plus the chance of using oversized 27.5’’+ tires give you the option to experiment with home-based modifications. As if these features were not already enough to hit the trails, the bike comes with a dropper post and suspension fork, avec plaisir.


Frame 6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell
Fork ROCKSHOX 35 GOLD RL suspension fork, 130 mm travel, 1.1/2" - 1.1/8"
Rims WTB ST i29 double wall, TCS 2.0, 32h
Hubs Front: BOMBTRACK GRAD Boost sealed hub, 6-bolt disc
Rear: BOMBTRACK GRAD Boost sealed hub, HG driver, 6-bolt disc
Axles 15 x 110 mm / 12 x 148 mm
Tires KENDA HELLCAT PRO ATC 29'' x 2.4" TLR, tubeless ready
Bottom Bracket SRAM DUB BSA 73 mm
Crankset TRUVATIV STYLO 6K aluminium crank, Boost DUB
Chainrings SRAM EAGLE X-SYNC 2, narrow-wide, 30 T
Shifters SRAM SX-EAGLE 12-speed trigger shifter
Rear Derailleur SRAM SX EAGLE, clutch, long cage
Cassette/Freewheel SRAM PG-1210 EAGLE 12-speed, 11 - 50 T
Chain SRAM NX EAGLE chain, 1/2'' x 11/128'', 118L
Brakes SRAM LEVEL hydraulic disc brakes with 180 mm F / 160 mm R rotors
Brake Levers SRAM LEVEL hydraulic
Handlebars BOMBTRACK ILLUSION flat bar, aluminium, 35 mm clamping diameter
Tape/Grips BOMBTRACK RETURN 135 mm grips
Stem BOMBTRACK CHASE aluminium stem, 35 mm clamping diameter
Headset Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Seatpost KS E20i dropper seatpost, 31.6 mm, 150 mm travel, 485 mm length

* Subject to change without notice.


Bombtrack Cale AL

Part Numbers

Option UPC MPN Store SKU
Matte Hazy Green / Medium 4055822508025 01125170121 210000089122
Matte Hazy Green / Large 4055822508032 01125170221 210000089121
