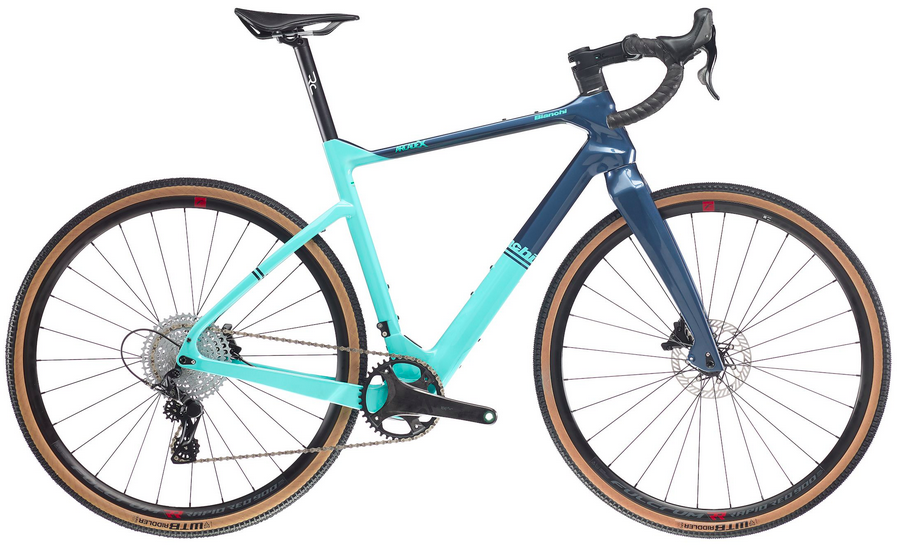

Bianchi Arcadex EKAR

Bianchi Arcadex EKAR
Color: Celeste / Blue Note Glossy
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free


The Arcadex gravel bike perfectly combines an emotional communion with nature, and the exhilarating rush of Bianchi racing DNA. It delivers distinct performance for the modern gravel rider.

The sculpted carbon fiber frame is incredibly responsive, so the Arcadex is primed to perform as soon as you push on the pedals – whether riding to explore, or indulging your competitive spirit. Take off-road capability, combine it with the speed and aesthetics you love about your road bike, then you have the Arcadex. With clearance for 700×42 or 650×47 tires, it’s for those who want to ride gravel, faster.

The Arcadex serves as the connection between the human spirit and the natural world beyond, enhancing every sense, from the crispness of colors to the feeling of friendship among companions. This bike creates an instant connection to the simple pleasure of riding and will help you to perform to the best of your ability, no matter the terrain. Everything is intensified. Nature is amplified.

The name Arcadex takes inspiration from Arcadia (???ad?a), the legendary region of Greek and Roman myth and tied inextricably to visions of natural harmony.

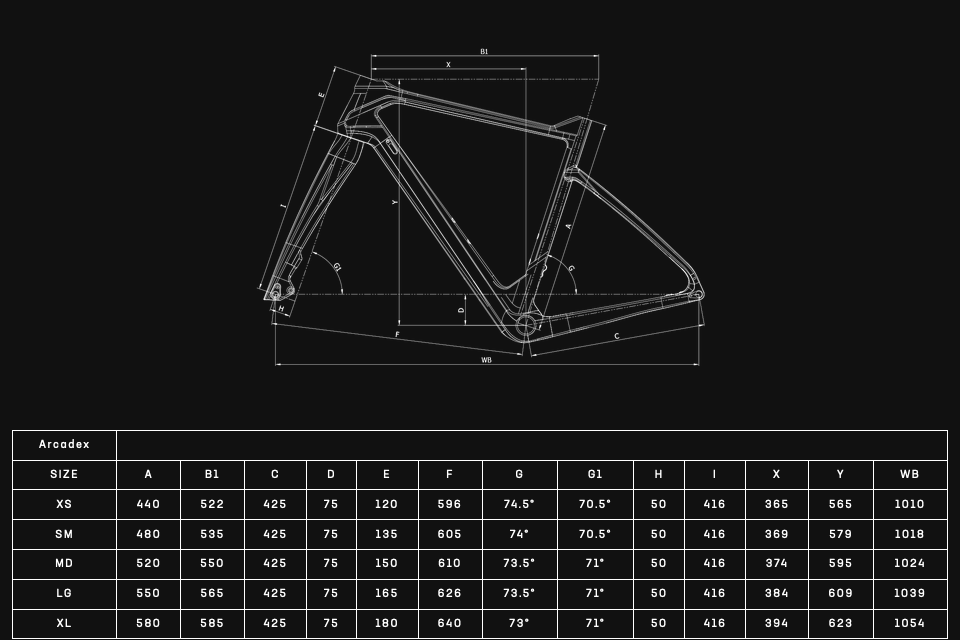

Frame Arcadex CARBON 1.5"" aheaset ,seat post 31.6mm, thru axle 12x142mm, flat mount disc version, Pressfit 41 , compatible with 42mm tire and mudguard
Fork Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm
Tires WTB Riddler Race 700 x 37c, Dual DNA Compound, 60tpi Casing, Aramid Bead, TCS light/fast rolling Tan sidewall
Bottom Bracket Fsa BB-CF86/CZ Stainless bearing for Road carbon / alloy MegaExo crankset Press-Fit 86,5x41
Crankset FSA Gossamer Pro BB386EVO 40T 1x13 Campy 13S 2-Tone Black B1 w/o BB, model No CK-6124S, Crank Length: 170mm-XS-S, 172.5mm-M-L, 175mm-XL
Shifters Campagnolo EKAR
Rear Derailleur Campagnolo EKAR 1x13sp
Chain Campagnolo EKAR
Brakes Campagnolo included in the shifter
Rotors Campagnolo Rotor, AFS 160mm
Handlebars Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm x size 42-44-46cm, size: 40cm=XS/S - 42cm=M/L - 44cm=XL
Stem Reparto Corse, Alloy 6061 , 1 1/4", raise 0°,Oversize, plastic adaptor for hose cover 1 1/4", finish black; Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL
Headset FSA SMR HS with 1-1/8” custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8", 1.5", 36°/45° ACB, compressor ring 1.1/8"
Seatpost Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm/XS; 350mm/S-M-L-XL
Saddle Selle Italia ModelX Superflow FeC, lenght/wide 245x145mm

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Celeste / Blue Note Glossy / X-Small YSBX1IXSGX 210000089205
Celeste / Blue Note Glossy / Small YSBX1ISMGX 210000089206
Celeste / Blue Note Glossy / Medium YSBX1IMDGX 210000089207
Celeste / Blue Note Glossy / Large YSBX1ILGGX 210000089208
Celeste / Blue Note Glossy / X-Large YSBX1IXLGX 210000089209
