Details
Price is higher than MSRP, but includes tariff fee, shipping, and assembly. If ordered directly from Kona you have to pay for all these, which ends up costing more. Compare Carts.

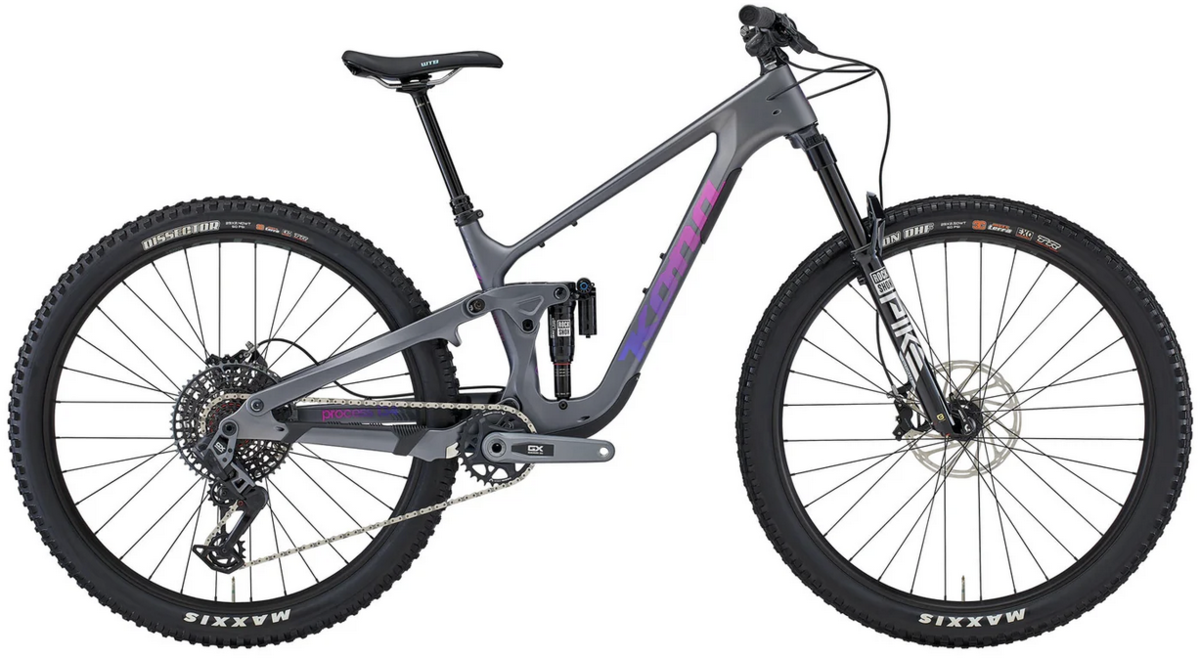

We’re not going to say that the Process 134 CR DL will suddenly make you able to rip turns or jib with anywhere near the style of Caleb Holonko or Eddie Reynolds, but at least you won’t be able to blame the bike if you come up short. And, supposing you DO come up short, the 134 CR DL’s beautifully made carbon fiber frame is built to take it. Flip-chip convenience lets you choose between the stability of full 29” wheels or the flickability or a mullet setup. Ultra-plush RockShox suspension makes molehills out of mountains, SRAM AXS T-Type drivetrain delivers shifting precision and smooth rolling DT Swiss hubs keep the party railing on down the trail. This is the mid-travel quiver killer.
Specs
| Frame | Kona Carbon 134mm Travel |
|---|---|
| Fork | RockShox Pike Ultimate RC2 Charger 3 DebonAir+ w/ButterCups 140mm Tapered 110mm Spacing |
| Rear Shock | RockShox Super Deluxe Ultimate RCT Trunnion |
| Rims | WTB KOM Team i30 TCS |
| Hubs |
Front: DT Swiss 350 110x15mm Rear:DT Swiss 350 148x12mm |
| Spokes | Double Butted – 14/15/14g |
| Tires |
Front: Maxxis Minion DHF EXO TR 3C 29x2.5" WT Maxxis Dissector EXO TR 3C 29x2.4" WT (27.5x2.4" WT size S) |
| Bottom Bracket | SRAM DUB PF92 |
| Crankset | SRAM GX Eagle Transmission |
| Chainrings | 32t |
| Shifters | SRAM AXS Pod Controller |
| Rear Derailleur | SRAM GX Eagle Transmission |
| Cassette/Freewheel | SRAM GX Eagle Transmission 10-52t 12spd |
| Chain | SRAM GX Eagle Transmission |
| Brakes | SRAM G2 RSC |
| Rotors | SRAM Centerline 200mm |
| Brake Levers | SRAM G2 RSC |
| Handlebars | Kona XC/BC 35 |
| Tape/Grips | Kona Key Grip |
| Stem | Kona XC/BC 35 |
| Headset | FSA Orbit 1.5 E ZS |
| Seatpost | Rock Shox Reverb Stealth w/1x Remote Lever 31.6mm |
| Saddle | WTB Volt |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Satin Metallic Charcoal / Small | B36134CD01 | 210000093543 |
| Satin Metallic Charcoal / Medium | B36134CD03 | 210000093544 |
| Satin Metallic Charcoal / Large | B36134CD05 | 210000093545 |
| Satin Metallic Charcoal / X-Large | B36134CD06 | 210000093546 |
