Kona Dew-E DL - 2023

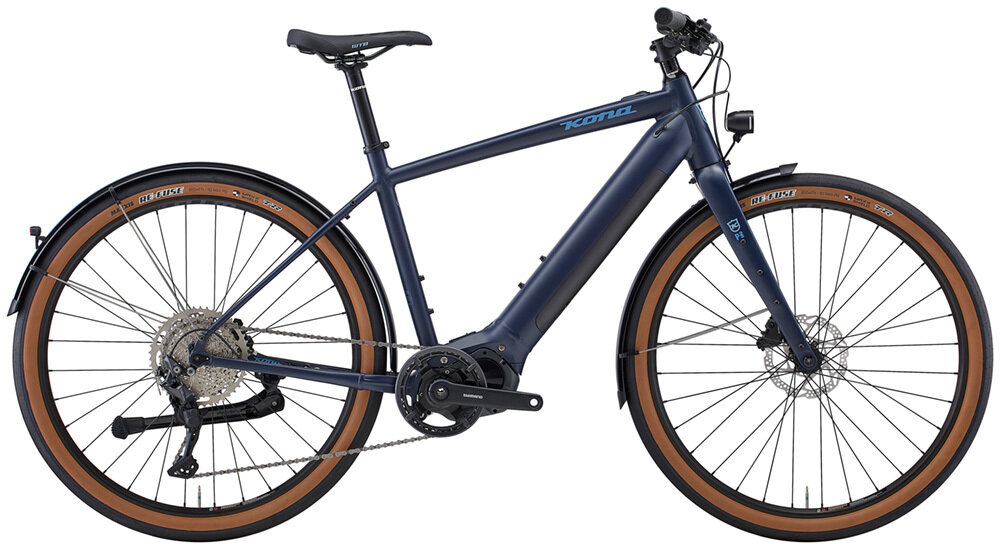

Kona Dew-E DL
  • Color: Matte Midnight w/ Blue-Grey Decals
$3,999.00
Color:
Matte Midnight w/ Blue-Grey Decals
Please select options Unavailable
Order now and pick up in-store for free

Details

Commuters have been flocking to the Dew-E DL for its stylish design and because it’s a blast to ride. An aluminum frame features a Kona Rove Verso Full Carbon Flat Mount Disc fork. A 10-speed drivetrain works in perfect harmony with the low-profile Shimano motor and integrated battery. Sturdy aluminum fenders and lights keep you dry and visible throughout your ride. Powerful hydraulic disc brakes and 160mm rotors stop on a dime, even in wet conditions and puncture-resistant 650x47c tires keep the road rolling by smoothly whether you’re cruising on pavement, or a dirt path. This is the electric commuter you’ve been searching for!

KONA 6061 ALUMINUM
Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing's wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame's strength and ride characteristics depending on its intended application.

INTERNAL HEADSET
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.

650b WHEELS
650b wheels and tires have a similar overall diameter to a traditional 700c gravel or commuting tire, but with a smaller diameter rim and a wider, taller tire. The extra air volume in this new generation of urban and mixed-surface tires means they can be run comfortably at lower pressures while still rolling quickly on a variety of surfaces. It's the best of both worlds.

Geometry

Geometry Chart:
Frame SizeSmallMediumLargeX-Large
Seat Tube Length (mm) 420 470 520 580
Top Tube Length (mm) 548 594 633 683
Reach (mm) 398 423 439 465
Stack (mm) 558 596 634 671
Standover (mm) 692 736 782 832
Head Tube Angle 70° 70° 70° 70°
Head Tube Length (mm) 135 175 215 255
Seat Tube Angle 75° 74° 73° 72°
Chainstay Length (mm) 460 460 460 460
Bottom Bracket Drop (mm) 60 60 60 60
Bottom Bracket Height (mm) 282 282 282 282
Wheelbase (mm) 1089 1127 1157 1197
Front Center (mm) 635 674 704 743
Fork Length (mm) 410 410 410 410
Fork Offset (mm) 50 50 50 50
Sizes:
Frame SizeHeight (inches)Height (cm)Inseam (inches)Inseam (cm)
Small 5'0"-5'3" 152-160cm 26"-29" 66-74cm
Small, Medium 5'2"-5'7" 157-170cm 27"-30" 69-76cm
Medium 5'6"-5'10" 168-178cm 29"-31" 74-79cm
Medium, Large 5'9"-6'0" 175-183cm 30"-33" 76-84cm
Large, X-Large 5'11"-6'2" 180-188cm 32"-35" 81-89cm
X-Large 6'1"-6'5" 185-196cm 33"-36" 84-91cm

Specs

Frame Kona 6061 Aluminum Butted
Fork Kona Rove Verso Full Carbon Flat Mount Disc
Rims WTB ST i23 TCS 2.0
Hubs Front: Shimano Tiagra 100x12mm
Rear: Shimano Tiagra 142x12mm
Spokes Stainless 14g
Tires WTB Horizon TCS w/ Puncture Protection 650x47c
Crankset Shimano E6100
Chainrings 38t
Shifters Shimano Deore
Rear Derailleur Shimano Deore
Cassette/Freewheel Shimano Deore 11-46t 10spd
Chain Shimano HG54
Brakes Shimano Hydraulic
Rotors Shimano RT54 160mm (centerlock)
Brake Levers Shimano MT201 Hydraulic
Handlebars Kona Aluminum Riser
Tape/Grips Kona Key Grip
Stem Kona Control
Headset FSA No.57BP
Seatpost Kona Commuter 31.6mm
Saddle WTB Volt
Accessories & Extras Fenders, Busch & Müller Front & Rear Light, Kickstand
Motor Shimano E6100 20MPH
Battery Shimano 504Wh
Controller/Display Shimano SC-E7000 Display
Charger Shimano STEPS 2A

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Matte Midnight w/ Blue-Grey Decals / Small B36EDWD01 210000087248
Matte Midnight w/ Blue-Grey Decals / Medium B36EDWD03 210000087249
Matte Midnight w/ Blue-Grey Decals / Large B36EDWD05 210000087250
Matte Midnight w/ Blue-Grey Decals / X-Large B36EDWD06 210000087251
