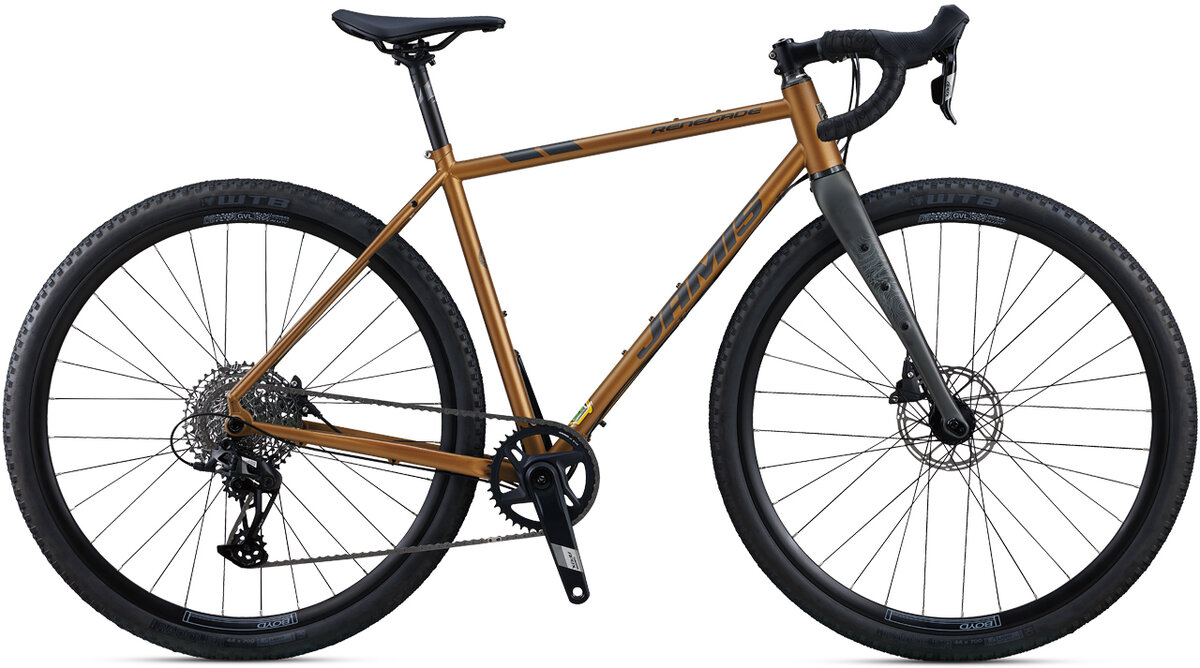

Jamis Renegade S2 Apex

Jamis Renegade S2 Apex
$1,999.95 - $2,599.95
$2,599.95
Color: Copper Tone
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free

Details

Since its inception in 2014 the Jamis Renegade has been defining versatility in modern adventure bikes. It’s not easy improving on something that’s capable of, well, just about everything, but the Jamis NEW Renegade platform is simply exceptional. They've succeeded in preserving the all-important DNA of our original Renegade while also adding more tire clearance, adjustability, and compliance.

Imagine a bike that could be a morning commuter, an after-work group ride toy, and a 300-mile weekend expedition companion. It’s right here. With over 21 fork and frame mounts you’ve got the option to mount fenders, a bento box, front and rear thru-axle carriers, and multiple water bottles on the main triangle or fork legs. Add clearance for 700 x 50mm and 650 x 2.00”*, and it’s clear the Renegade series is equipped to accommodate any adventure.



Adventure Frame Design – We redesigned the new Renegade from the ground up to be the ultimate modern day gravel bike. From a frame design perspective, our goal was to create a well-balanced, responsive handling bike with a compliant ride feel. How did we do this? We paired a stretched top-tube with a slightly shorter stem, while also lowering the bottom-bracket and lengthening the wheelbase to put the rider more “in” the bike. Combine these improvements with our Size-Specific-Design (SSD) philosophy and what we’ve got is a fantastically capable platform. The new Renegade is fast, fun, and will take you anywhere you dare to go…

Adventure Fork Design – Having the ability to adjust handling characteristics is key for a platform as versatile as Renegade. Our new fork design features flip chips that allow adjustment between 50mm and 55mm offset. The upper position (50mm), allows for increased stability at higher speeds and is ideal setting for gravel riders. The lower position (55mm) provides more responsive steering, which is an ideal for an all-road setup.

Featuring design that allows riders of all sizes, disciplines, and budgets to ride comfortably on-road, off-road, and everywhere in-between, Renegade is ready for action no matter which Renegade you ride. The snappy, responsive ride of our carbon models set the bar for how we wanted the steel and aluminum bikes to perform, and with the ability to mount up to a 50c tire these bikes are ready to go just about anywhere. All you need is the desire to push, pedal, and explore. A full range of frame sizes from 48cm to 61cm across all models means there’s a Renegade designed just for you.

Specs

Frame Renegade V2 Reynolds 631 double-butted chromoly UDH frame, SST tubing diameters, tapered head tube for tapered fork, oval seat stays, Di2 compatible, threaded T47 BB shell, 12×142 thru-axle, flat mount disc brake mounts, down tube mounted full cable housing, internal dropper post ready, 3 waterbottle mounts, TT mounts, rack and fender eyelets.
Fork Renegade V2 monocoque carbon composite fiber fork, flip-chip with 50/55mm offset, 12mm thru-axle, carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender mounts and water bottle eyelets
Wheels Boyd GVL Tubeless wheelset, i25, 32/32H, BOYD 6-bolt sealed bearing hubs, Pillar SR14 spokes, HG Driver, Wingnut tubeless valves, front 12mm/rear 12×142 thru-axles with Switch Lever
Axles Front M12 x 130L, TP = 1.5, TL = 11.5mm
Rear M12 x 163L, TP = 1.5, TL = 14mm
Tires WTB RADDLER Tubeless, 700 x 44c, Dual DNA Compound, Aramid bead
Bottom Bracket SRAM DUB T47 68 Road Wide
Crankset SRAM APEX Wide 40T, 165mm (48), 170mm (51), 172.5mm (54/56), 175mm (58/61)
Shifters SRAM APEX HRD, 12-speed
Rear Derailleur SRAM APEX
Cassette/Freewheel SRAM PG 1231 XPLR 12-speed, 11-44T
Chain SRAM APEX
Brakes SRAM APEX hydraulic disc brakes, Centerlock Centerline 160mm rotors with SRAM APEX HRD levers
Handlebars Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12° flare, 31.8 x 420 (48-51) 440mm (54-56), 460mm (56-61)
Tape/Grips Velo EVA gel with gel inserts
Stem Ritchey 4-AXIS Stem 6°x60mm (48-51), 70mm (54-56), 80mm (58/61)
Headset FSA No.57E/42/CUP Internal headset with lower cup, 1.5 – 1 1/8”
Seatpost Jamis carbon fiber micro-adjust, 27.2 x 300mm, 0mm offset with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp
Saddle Selle Royal SRX Gravel Saddle with relief hole and MG rails

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Copper Tone / 48cm 03-4214BR 210000087848
Copper Tone / 54cm 03-4216BR 210000087850
Copper Tone / 58cm 03-4218BR 210000087852
