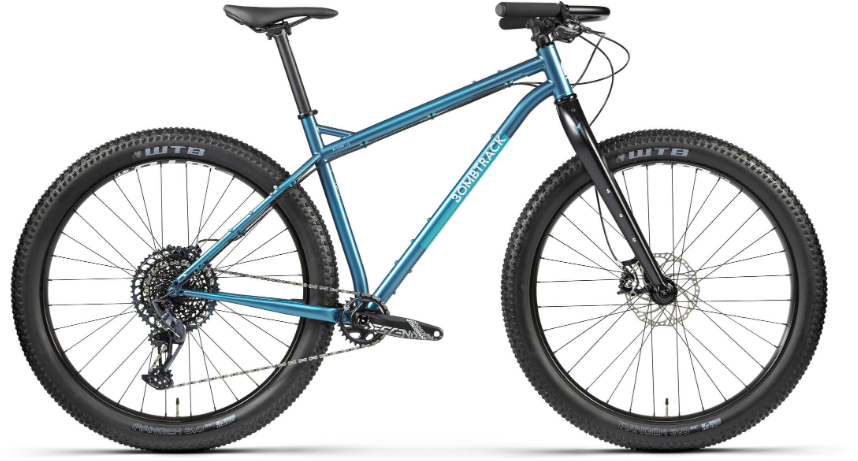

Bombtrack Bicycle Company Beyond+ ADV
Details
For rides that go the extra mile, you cannot compromise on weight – nor comfort. The Beyond+ ADV packs 29’’ tires, free-spinning gearing and a range of handling positions thanks to the vast sweep of a Jones H-Bar handlebar. Low profile geometry provides stand-over for technical riding while also improving handling when ridden loaded. The double-butted steel frame, accompanied by a tapered BPC carbon fork, cuts weight without losing comfort or control. Mounting points allow an array of cargo-carrying opportunities; the bike rounded off with a 10 – 52T cassette and Magura Trail Sport brakes mean only the edges of a map will hold you back.
It’s a bike you can pack up your life on and go across the Siberia or the Rockies on or you can simply do what we did and load up for a cheeky midweek over-nighter on the South Downs and enjoy the fresh air. It will handle either with ease and will put a smile on your face when those wheels just keep rolling over everything.
Tubeless ready WTB ST i45 front rim, WTB ST i40 rear rim with tubeless ready WTB Ranger Tough / Fast rolling 3.0 tires
Double butted suspension corrected crmo frame with rack and fender mounts and BSA bottom bracket
Bombtrack BPC full carbon fork with triple cage mounts on both legs.
Bombtrack Grad Boost disc brake hubs with 15mm and 12mm thru axles.
Sram GX Eagle 12-speed drivetrain with 10-52t cassette.
Top tube bag direct mounts, triple cage mounts on both seat stays, underneath, and on top of the down tube, double cage mounts on the seat tube.
Specs
| Frame | 4130 double butted crmo, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell |
|---|---|
| Fork | BOMBTRACK BPC full carbon, TA, 1.1/2'' - 1.1/8'', triple cage mounts, internal hub dynamo cable routing |
| Rims |
Front: WTB ST i45 double wall, TCS 2.0, 32h Rear: WTB ST i40 double wall, TCS 2.0, 32h |
| Hubs |
Front: BOMBTRACK GRAD Boost sealed hub, 6-bolt disc Rear: BOMBTRACK GRAD Boost sealed hub, XD driver, 6-bolt disc |
| Axles | 15 x 110 mm / 12 x 148 mm |
| Tires | WTB RANGER TCS TOUGH / FAST ROLLING 29'' x 3.0'', tubeless ready |
| Bottom Bracket | SRAM DUB BSA 73 mm |
| Crankset | SRAM DESCENDANT aluminium crank, Boost DUB |
| Chainrings | SRAM EAGLE X-SYNC 2, narrow-wide, 30 T |
| Shifters | SRAM GX-EAGLE 12-speed trigger shifter |
| Rear Derailleur | SRAM GX EAGLE, clutch, long cage |
| Cassette/Freewheel | SRAM XG-1275 EAGLE 12-speed, 10 - 52 T |
| Chain | SRAM GX EAGLE chain, 1/2'' x 11/128'', 118L |
| Brakes | MAGURA TRAIL SPORT 4 piston front, 2 piston rear with 180 mm rotors |
| Brake Levers | MAGURA TRAIL SPORT hydraulic |
| Handlebars | JONES H-BAR LOOP 710 travel bar, 31.8 mm, 710 mm |
| Tape/Grips | BOMBTRACK SHIFT 170 mm grips |
| Stem | BOMBTRACK TRAMP forged aluminium stem, 3° |
| Headset | Sealed semi integrated / external aheadset, 1.1/2'' - 1.1/8'' |
| Seatpost | BOMBTRACK YEW aluminium seatpost, 30.9 mm x 400 mm |
| Saddle | BOMBTRACK FUZZ |
* Subject to change without notice.
Videos
Bombtrack Beyond ADV+
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Matte Metallic Teal / Small | 4055822507981 | 01125160121 | 210000089125 |
| Matte Metallic Teal / Medium | 4055822507998 | 01125160221 | 210000089124 |
| Matte Metallic Teal / Large | 4055822508001 | 01125160321 | 210000089123 |
| Matte Metallic Teal / X-Large | 4055822508018 | 01125160421 | 210000089126 |
